Audio ADA

概述

Audio ADA（以下简称 ADA）是dump RX-DFE、TX-DFE、meter adc 内部指定节点数据的硬件模块

功能特性

ADA 支持如下特性：

• 支持dump RX-DFE、TX-DFE、meter adc 内部指定节点数据

• 支持DMA或总线方式dump数据到指定内存

ADA 与其它模块的连接关系如下图所示。

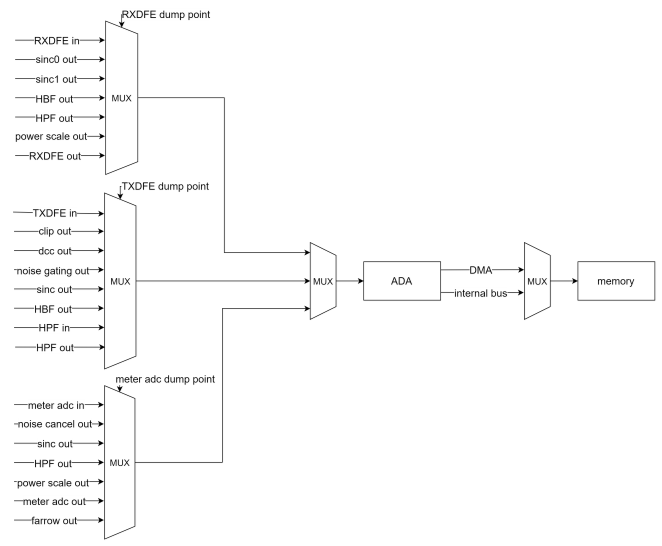

ADA 与其它模块连接示意图

API 介绍

struct wq_ada_rx_dfe_param

Public Members

WQ_RX_DFE_CHN chn

WQ_RX_DFE_DUMP_DATA_MODULE moudle

struct wq_ada_tx_dfe_param

Public Members

WQ_TX_DFE_CHN chn

WQ_TX_DFE_DUMP_DATA_MODULE moudle

struct wq_ada_mdfe_param

Public Members

WQ_ADC_DUMP_DATA_MODULE sel

struct wq_ada_dump_param

Public Members

union wq_ada_dump_param::wq_ada_module_param _module

ada_dump_callback cb

uint8_t *dump_buffer

uint32_t buffer_length

union wq_ada_module_param

Public Members

wq_ada_rx_dfe_param_t rx_dfe

wq_ada_tx_dfe_param_t tx_dfe

wq_ada_mdfe_param_t mdfe

Typedefs

typedef enum _WQ_ADA_TRIGGER_SRC WQ_ADA_TRIGGER_SRC

For specific definitions, please refer to the header file wq_audio_resource.h.

typedef enum _WQ_ADA_DUMP_MODULE WQ_ADA_DUMP_MODULE

For specific definitions, please refer to the header file wq_audio_resource.h.

typedef void (*ada_dump_callback)(uint8_t *buffer, uint32_t length)

Audio ADA dump irq callback.

typedef struct wq_ada_rx_dfe_param wq_ada_rx_dfe_param_t

For specific definitions, please refer to the header file wq_ada.h.

typedef struct wq_ada_tx_dfe_param wq_ada_tx_dfe_param_t

For specific definitions, please refer to the header file wq_ada.h.

typedef struct wq_ada_mdfe_param wq_ada_mdfe_param_t

For specific definitions, please refer to the header file wq_ada.h.

typedef struct wq_ada_dump_param wq_ada_dump_param_t

For specific definitions, please refer to the header file wq_ada.h.

Functions

void wq_ada_init(void)

This function is to init ADA module.

void wq_ada_clk_enable(void)

This function is to enable ADA module's clock.

void wq_ada_irq_config(void)

This function is to configure ADA module's IRQ.

WQ_RET wq_ada_prepare_dma(void)

This function is to prepare for ADA module's DMA.

返回:

WQ_RET_OK - success, other - failed

bool wq_ada_get_dump_complete(void)

This function is to get dump done flag.

返回:

bool

void wq_ada_dump_src_link(WQ_ADA_TRIGGER_SRC src)

This function is to set DMA's src.

参数:

src -- is DMA's src

WQ_RET wq_ada_pull_set(char *dst, uint32_t size, wq_dma_peri_done_cb cb)

This function is to set DMA's parameter and callback.

参数:

• dst -- is DMA dst buffer.

• size -- is DMA size

• cb -- is DMA complete's callback

返回:

WQ_RET_OK - success, other - failed

WQ_RET wq_ada_dump_config(WQ_ADA_DUMP_MODULE module, const wq_ada_dump_param_t *param)

This function is to configure ADA module's dump parameters.

参数:

• module -- is ADA dump ID

• param -- is ADA dump parameter

返回:

WQ_RET_OK - success, other - failed

void wq_ada_read_data_polling(void)

This function is to read data with polling.

void wq_ada_read_data_int(void)

This function is to read data with interrupt.
